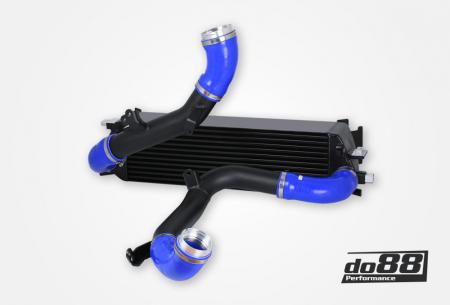

| The best Volvo S60 V60 V90 S90 XC90 (SPA) performance intercooler kit on the market! This BigPack includes both do88 performance intercooler and pipe kit. This kit is for you with high horsepower goals and want to upgrade to the absolutly best! Just changing to our performance intercooler is a big improvement, together with our pressure pipe kit the improvement is huge! Our pressure pipes have considerably better airflow than stock piping, verified by several tests both in car and in our own SuperFlow SF-1020 flow bench. Significant advantages with do88 BigPack (OEM intercooler/pipes): - Core volume: 13766 cm3 (8476 cm3), do88 is 62% larger! - Air flow at 0,15bar/2,18psi pressure drop: 372 CFM (268 CFM), do88 39% higher! See diagram below! The BigPack includes a full aluminum performance intercooler and a complete 63mm (2,5”) and 70mm (2,75") pipe kit and silicone hoses. This BigPack replaces everything between the turbo outlet and the throttle body, hence the drastical improvement in airflow and cooling performance. The do88 performance intercooler is an all-aluminum construction. With CAD-designed, flow optimized cast end tanks along with an optimized core design, it achieves the best possible cooling efficiency combined with lowest possible pressure drop! The pressure pipes are manufactured in 63mm (2,5”) and 70mm (2,75") mandrel bent seamless aluminum pipes. Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement. These hoses can handle very high temperature and pressure! Always remember that the OEM intercooler was designed for the power level the car was built for originally. A power increase or even very hard use of the car in standard version, may cause the OEM intercooler not having the performance that you need. So only after an engine software tune the do88 BigPack will give a performance increase over the OEM intercooler! do88 BigPack comes with all hardware necessary for installation. Click here for intercooler installation guide. Click here for pressure pipe installation guide. |
| When you order this BigPack, there are two choices that has to me made: 1. Engine: Petrol or Diesel. 2. Hose color: Three different hose colors are avalible Blue / Black / Red. There are no performance difference between the different colors, choose which color you think will be best for your car. |
Fits:
Volvo S60/V60
Model years: 2019-
Engine: T4, T5, T6 not hybrid engines.
Volvo S90/V90/V90 CC
Model years: 2017-
Engine: T4, T5, T6 not hybrid engines.
Volvo XC60
Model years: 2018-
Engine: T4, T5, T6 not hybrid engines.
Volvo XC90
Model years: 2016-
Engine: T4, T5, T6 not hybrid engines.
OEM reference:
31370288, 31686412, 31439498, 32222269, 32222271
32222071, 32222272, 31441970, 31338306, 31410892
This diagram shows the charge air flow at different pressure drops of do88 BigPack compared to OEM intercooler and pipes*:
