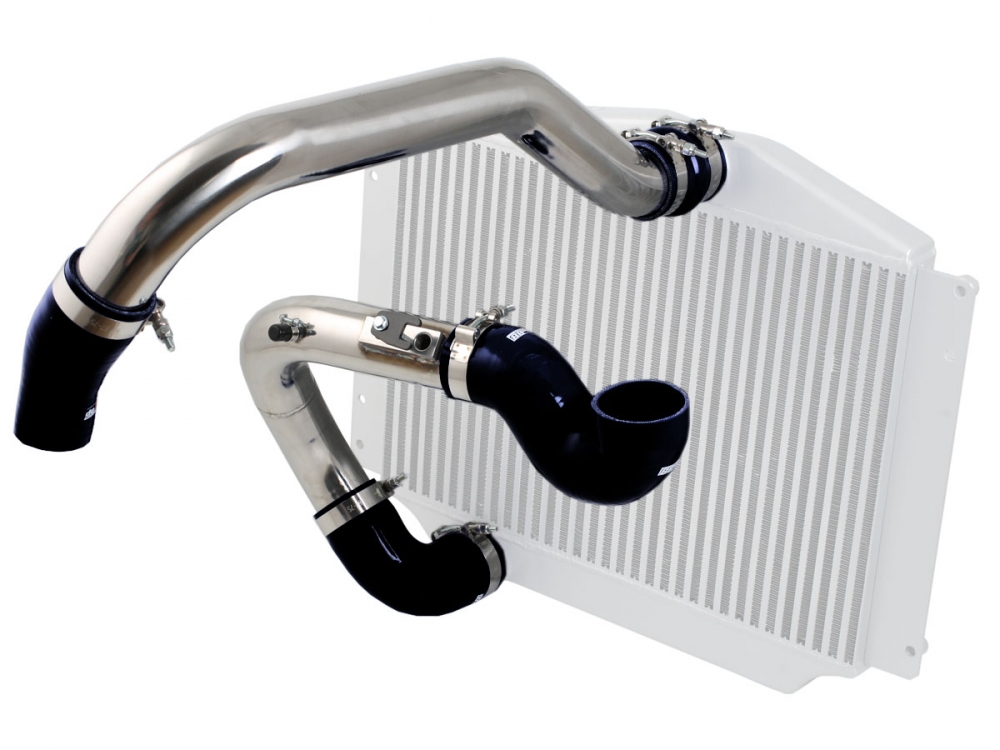

do88 intercooler hose kit with polished pressure pipe - Black
Significant advantages with do88 pressure pipes (OEM pipes):

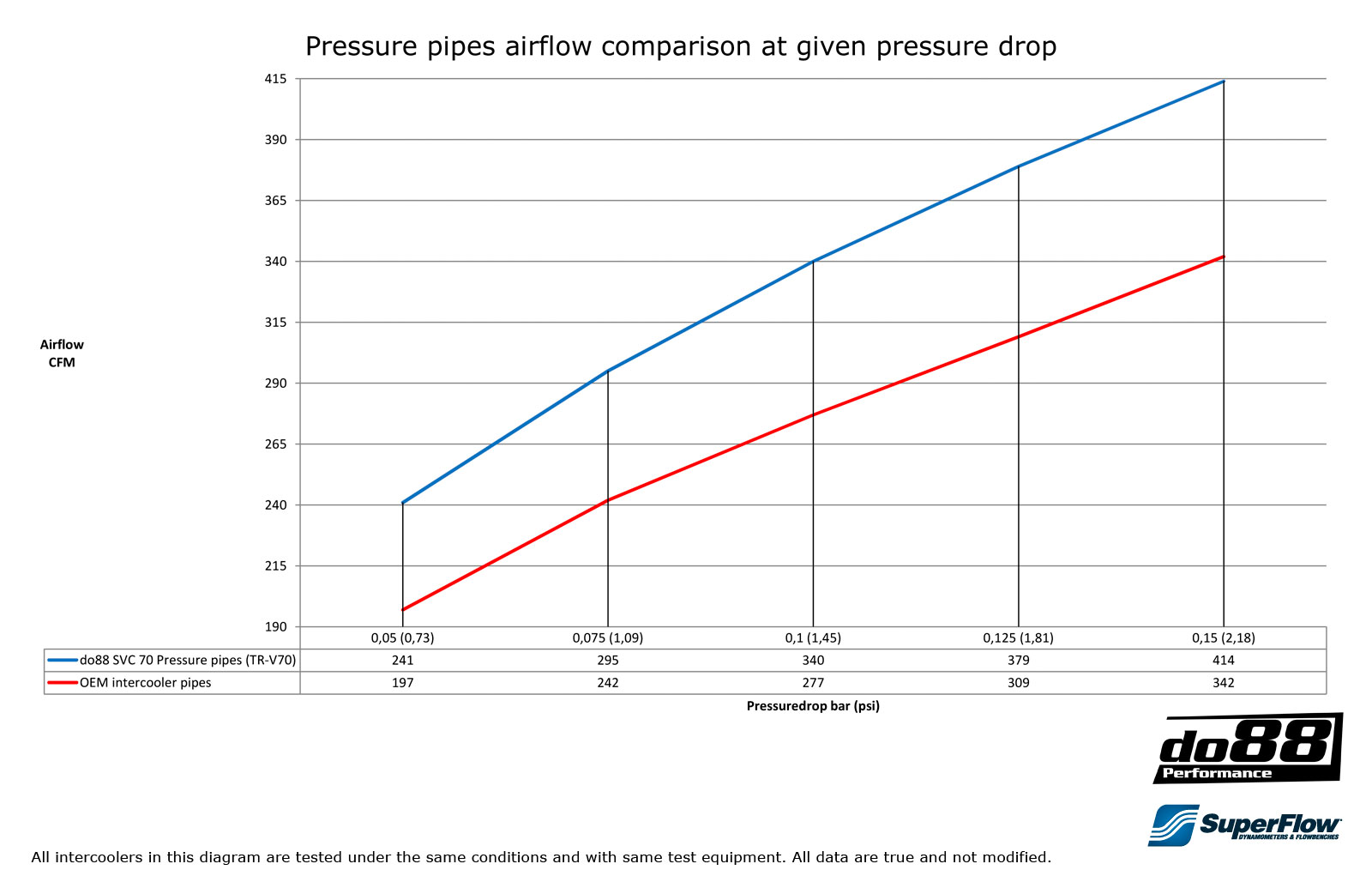

- Air flow at 0,15 bar/2,18 psi pressure drop: 414 CFM (342 CFM), do88 21% higher
- The total length of the do88 pipes is 600 mm shorter than the OEM pipes which increases the throttle response
- Designed to handle high pressure and temperatures
Will fit:
Volvo C70 - 1999-2005 - all versions with Petrol, turbo engines
Volvo S70 - 1999-2000 - all versions with Petrol, turbo engines
Volvo V70 - 1999-2000 - all versions with Petrol, turbo engines
The kit includes:
2 pcs pressure pipes
4 pcs silicone hoses
6 pcs T-bolt hose clamps
2 pcs standard hose clamps

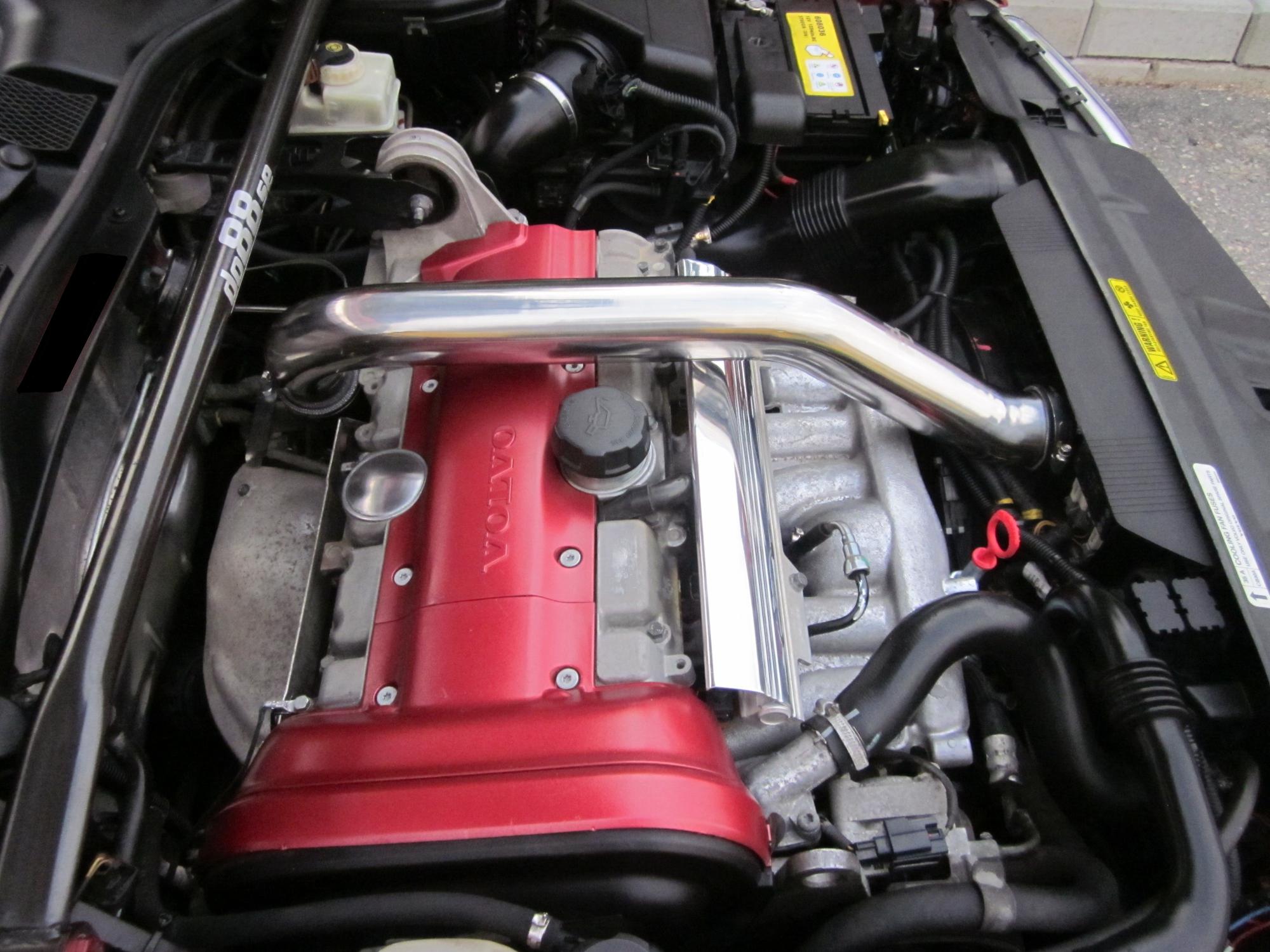

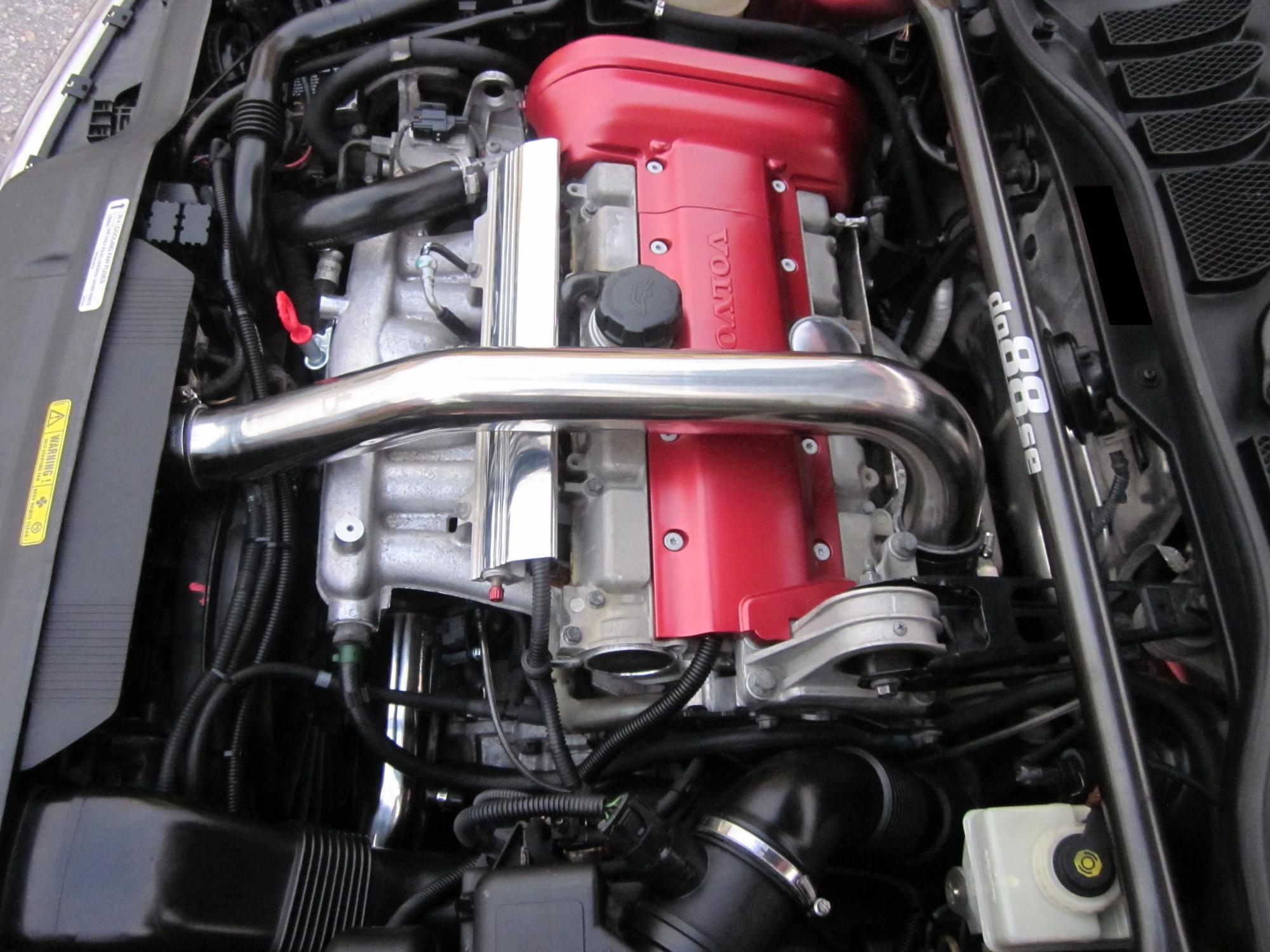

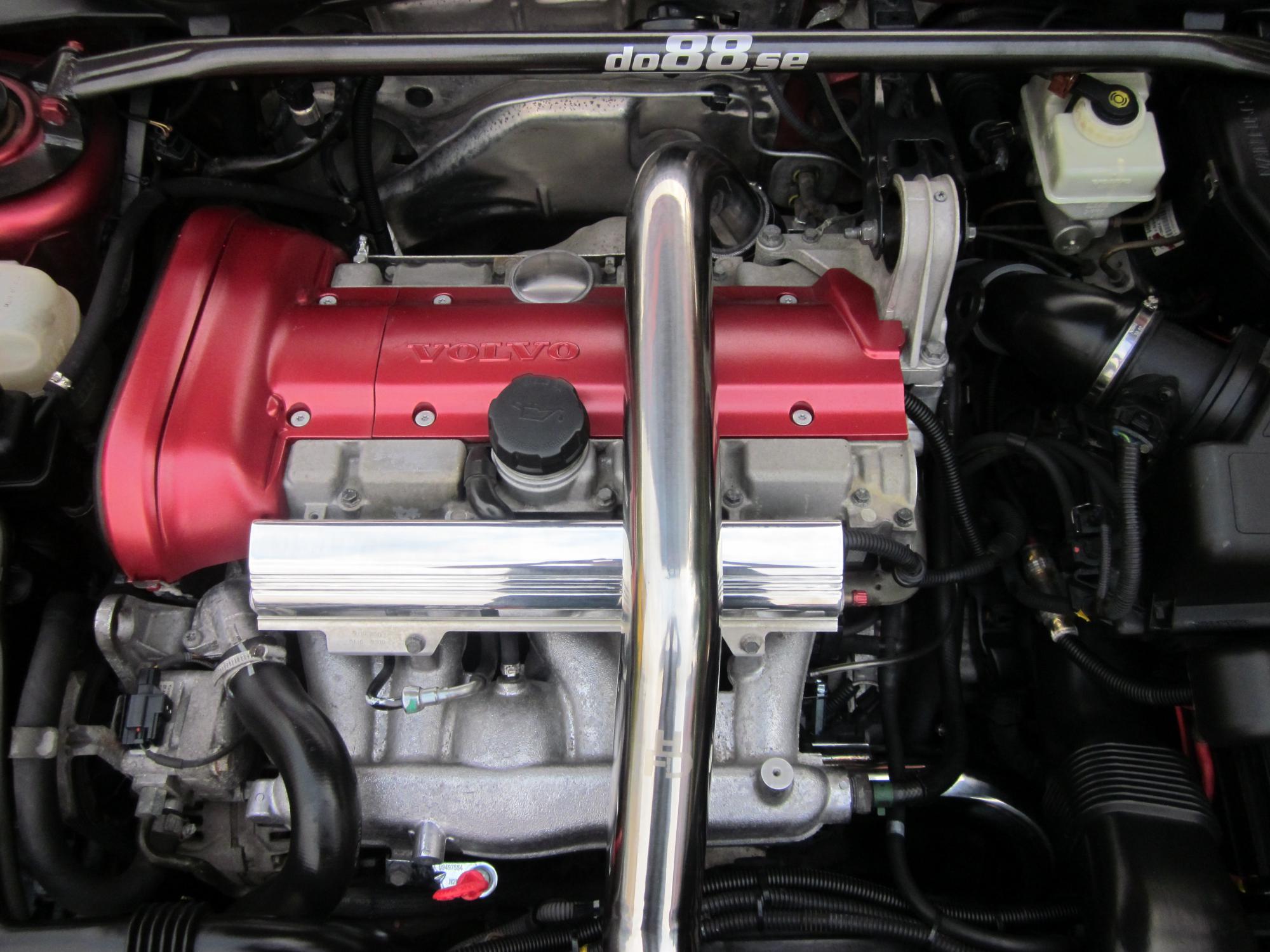

The pressure pipes are manufactured in 2,5” mandrel bent stainless steel pipes. These pipes reverse the flow through the intercooler, the air that goes to the throttle body is taken from the bottom of the intercooler. This makes the total length of the do88 pipes600 mm shorter than the OEM pipes.

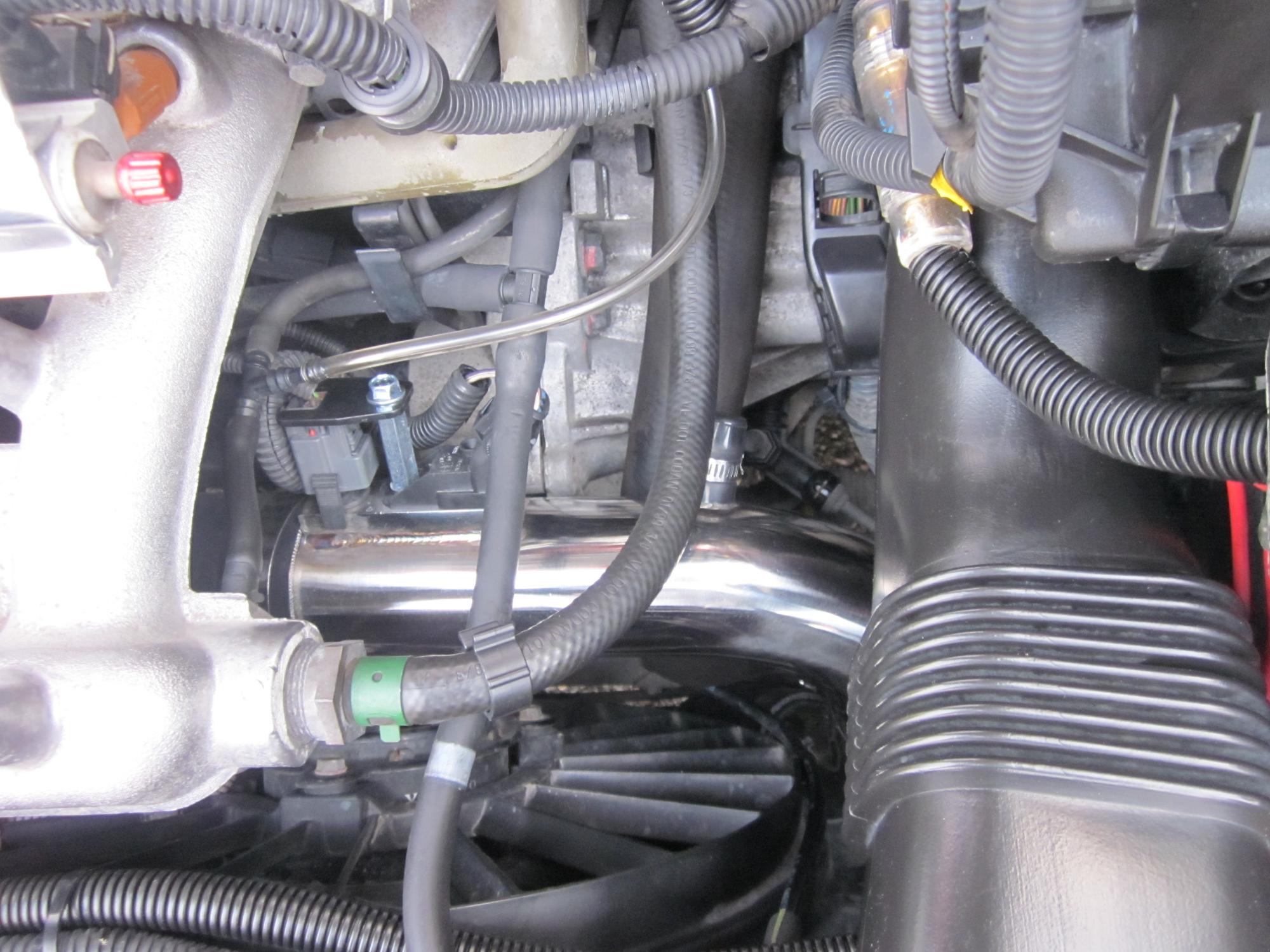

do88 lower intercooler pipe has a very secure attachment of the pressure and temperature sensor in a custom casted / machined flange. Original attachment of these sensors can often cause problems with leakage at higher boost pressure than the original.
Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement. These hoses can handle very high temperature and pressure.
Always remember that the OEM intercooler pipes and hoses was designed for the power level the car was built for and a power increase or even very hard use of the car in a standard version may cause that the OEM pipes and hoses don’t have the performance you need. So only after engine software tune do88 pressure pipes will give a performance increase over the OEM pipes!
Note!
The kit comes with all hardware necessary for installation.
Significant advantages with do88 pressure pipes (OEM pipes):
- Air flow at 0,15 bar/2,18 psi pressure drop: 414 CFM (342 CFM), do88 21% higher
- The total length of the do88 pipes is 600 mm shorter than the OEM pipes which increases the throttle response
- Designed to handle high pressure and temperatures
Will fit:
Volvo C70 - 1999-2005 - all versions with Petrol, turbo engines
Volvo S70 - 1999-2000 - all versions with Petrol, turbo engines
Volvo V70 - 1999-2000 - all versions with Petrol, turbo engines
The kit includes:
2 pcs pressure pipes
4 pcs silicone hoses
6 pcs T-bolt hose clamps
2 pcs standard hose clamps
The pressure pipes are manufactured in 2,5” mandrel bent stainless steel pipes. These pipes reverse the flow through the intercooler, the air that goes to the throttle body is taken from the bottom of the intercooler. This makes the total length of the do88 pipes600 mm shorter than the OEM pipes.
do88 lower intercooler pipe has a very secure attachment of the pressure and temperature sensor in a custom casted / machined flange. Original attachment of these sensors can often cause problems with leakage at higher boost pressure than the original.
Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement. These hoses can handle very high temperature and pressure.
Always remember that the OEM intercooler pipes and hoses was designed for the power level the car was built for and a power increase or even very hard use of the car in a standard version may cause that the OEM pipes and hoses don’t have the performance you need. So only after engine software tune do88 pressure pipes will give a performance increase over the OEM pipes!
Note!
The kit comes with all hardware necessary for installation.
