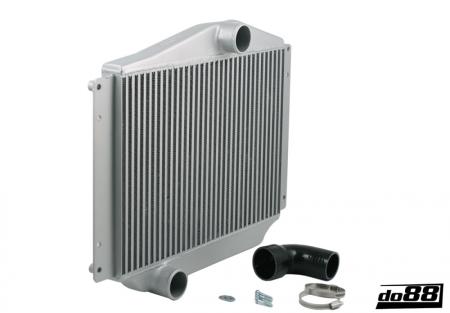

do88 intercooler
OEM ref.: 9492730 , 9186802 , 9470591
This performance intercooler is developed by do88 to replace the OEM intercooler and gives true performance without the need of rebuilding the whole car!
Significant advantages with do88 performance intercooler (OEM intercooler):
- Core volume: 12302m3 (7255cm3), do88 is 70% larger

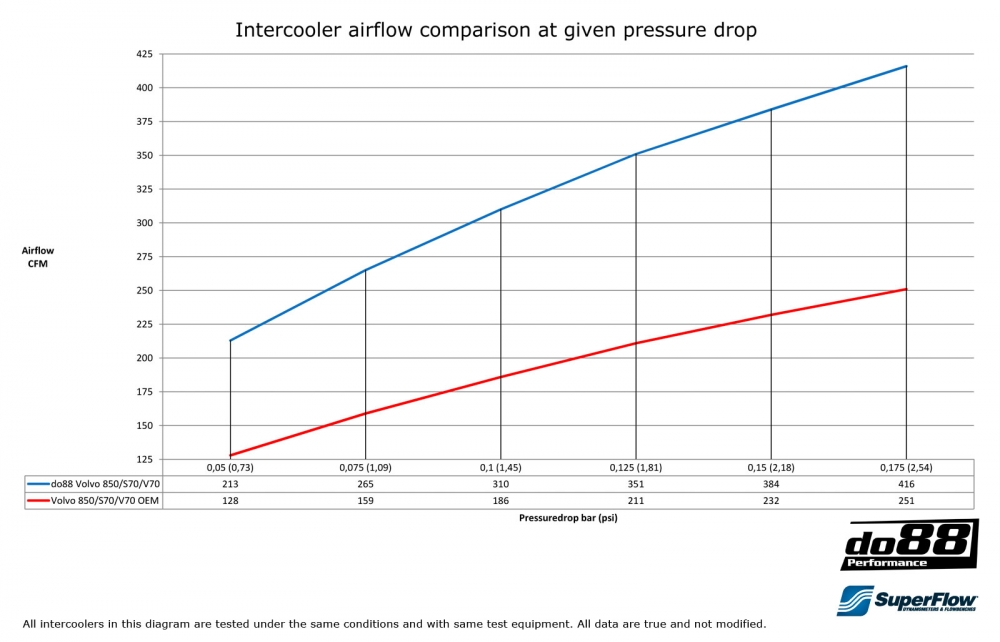

- Air flow at 0,15bar/2,18psi pressure drop: 384CFM (232CFM), do88 66% higher

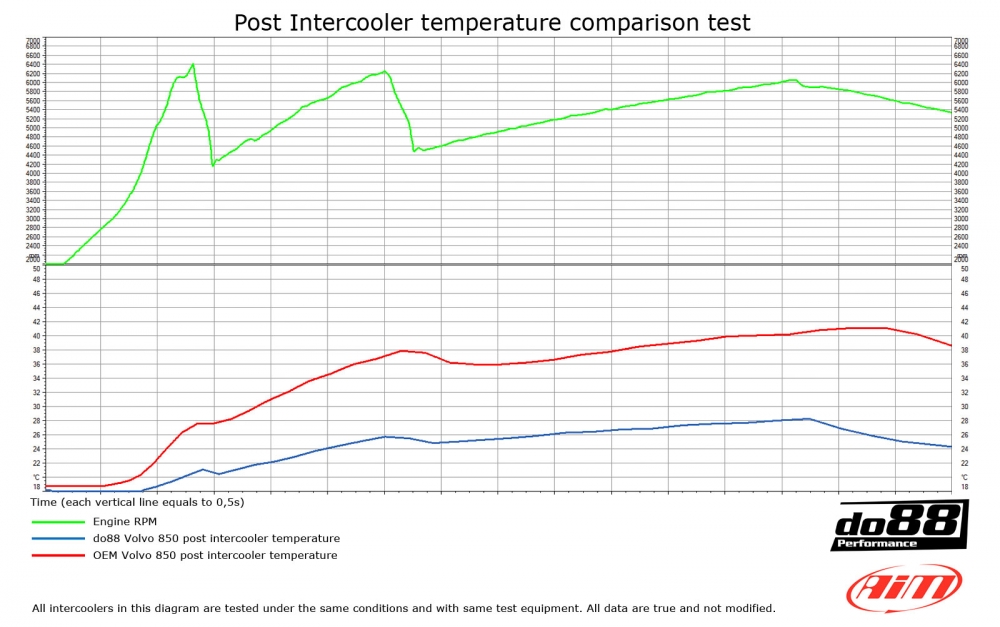

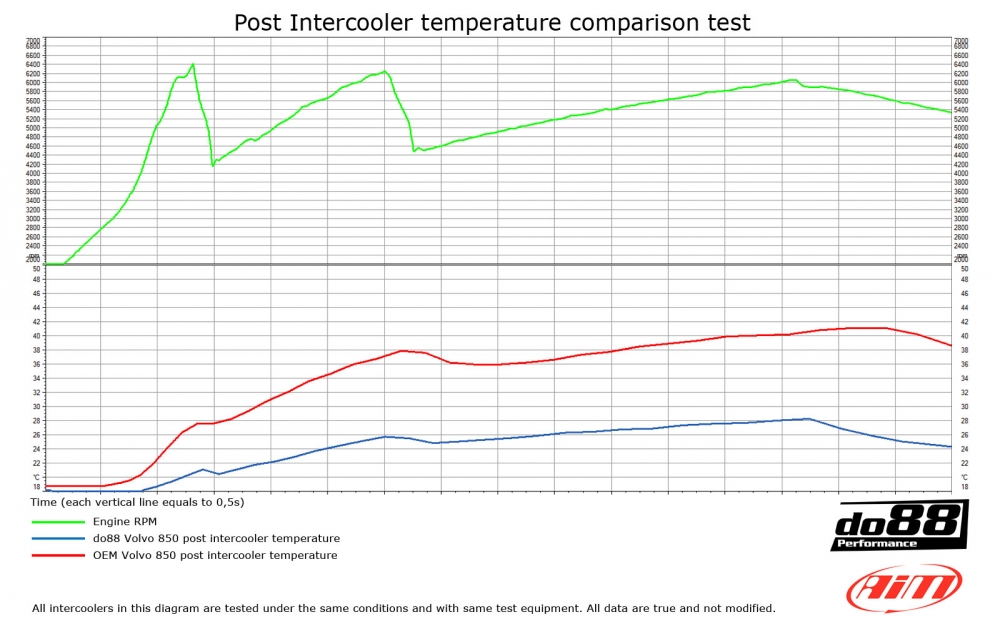

- Post intercooler air temperature at same conditions: 28°C (41°C), do88 13°C lower
Will fit:
Volvo 850 - 1994-1997 - all version with turbo 2.0T 2.3T 2.4T 2.5T T5 T5-R TDI
Volvo C70 - 1998-2005 - all version with turbo 2.0T 2.3T 2.4T T5
Volvo S70 - 1998-2000 - all version with turbo 2.0T 2.3T 2.4T 2.5T T5 TDI
Volvo V70 - 1998-2000 - all version with turbo 2.0T 2.3T 2.4T 2.5T T5 TDI
Volvo XC70 - 1998-2000 - all version with turbo 2.0T 2.3T 2.4T 2.5T T5

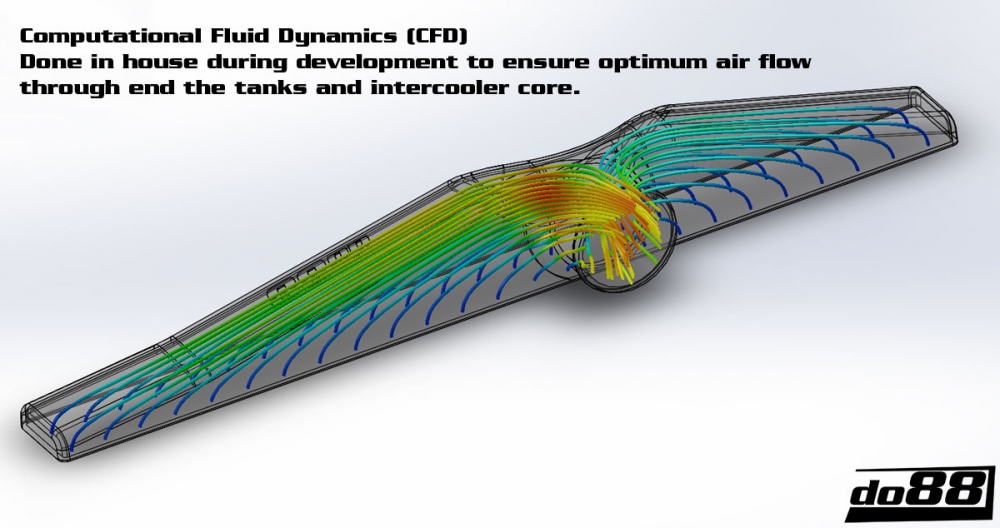

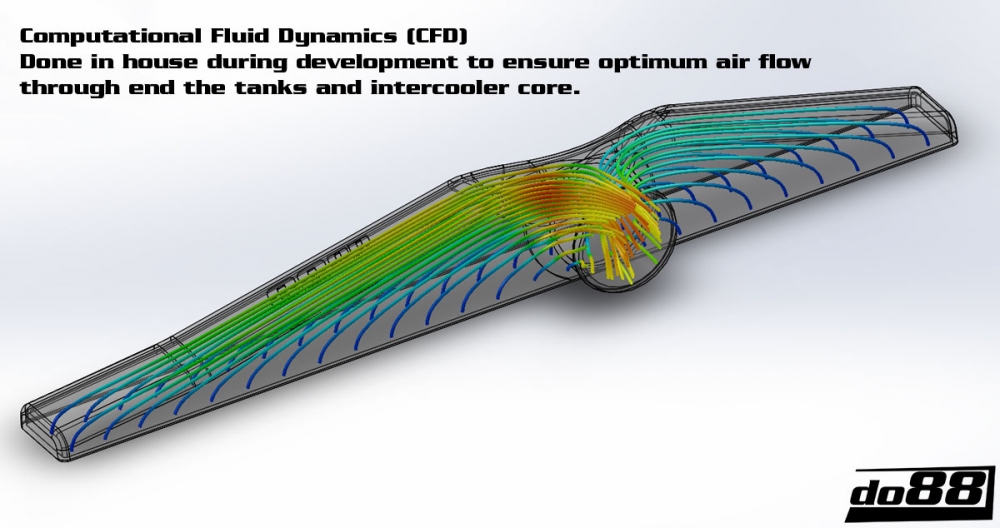

do88 performance intercooler are an all-aluminum construction with cad designed, flow optimized cast end tanks and optimized core design to achieve best possible cooling efficiency combined with lowest possible pressure drop.
Always remember that the OEM intercooler was designed for the power level the car was built for and a power increase or even very hard use of the car in a standard version may cause that the OEM intercooler don’t have the performance you need. So only after engine software tune do88 performance intercooler will give a performance increase over the OEM intercooler.
The OEM intercooler have plastic tanks that don’t keep up with higher boost levels very well so the do88 performance intercooler will also add reliability.
A common misunderstanding is that an intercooler installed in this position cannot provide good performance and a front mounted intercooler / FMIC would be much better. But actually the do88 performance intercooler are far better than most FMIC installations where only a core with small front surface are possible to install and often also installed partially behind the bumper beam which will reduce cooling capacity even further and often cooling below the OEM intercooler are achieved.

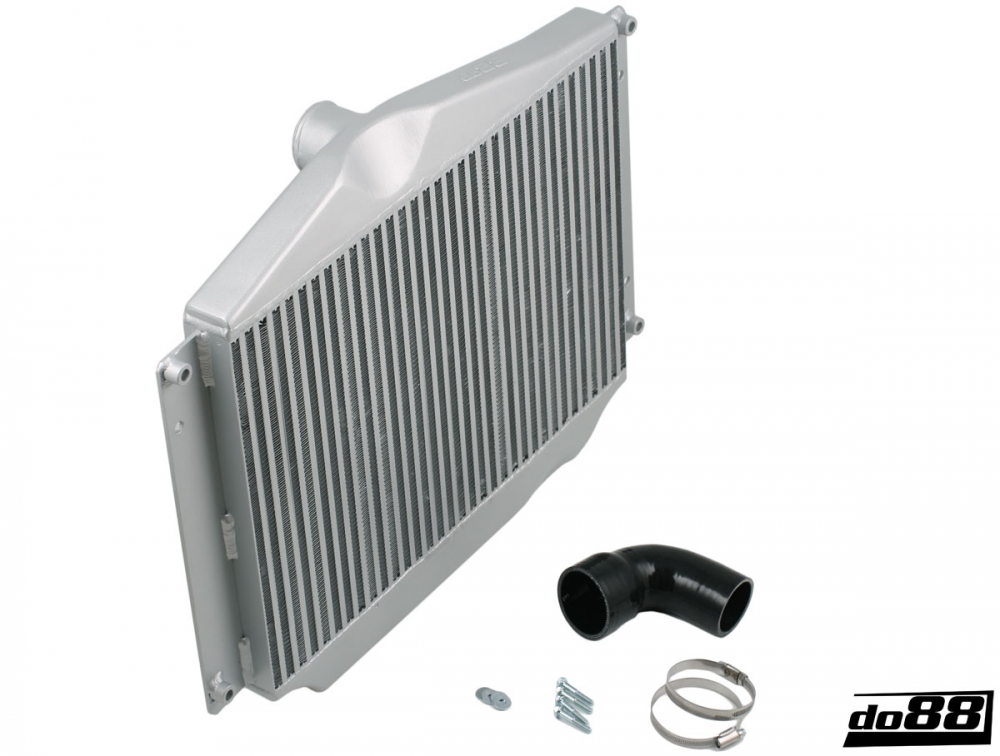

do88 performance intercooler comes with all hardware necessary for installation. For installation instruction Click Here! (Comes during winter 2014)
Please Note!
do88 performance intercooler has a 2,5” (63mm) lower intercooler hose connection. Because of this we include a silicone hose which you install between the lower hose connection and intercooler pipe.
OEM ref.: 9492730 , 9186802 , 9470591
This performance intercooler is developed by do88 to replace the OEM intercooler and gives true performance without the need of rebuilding the whole car!
Significant advantages with do88 performance intercooler (OEM intercooler):
- Core volume: 12302m3 (7255cm3), do88 is 70% larger
- Air flow at 0,15bar/2,18psi pressure drop: 384CFM (232CFM), do88 66% higher
- Post intercooler air temperature at same conditions: 28°C (41°C), do88 13°C lower
Will fit:
Volvo 850 - 1994-1997 - all version with turbo 2.0T 2.3T 2.4T 2.5T T5 T5-R TDI
Volvo C70 - 1998-2005 - all version with turbo 2.0T 2.3T 2.4T T5
Volvo S70 - 1998-2000 - all version with turbo 2.0T 2.3T 2.4T 2.5T T5 TDI
Volvo V70 - 1998-2000 - all version with turbo 2.0T 2.3T 2.4T 2.5T T5 TDI
Volvo XC70 - 1998-2000 - all version with turbo 2.0T 2.3T 2.4T 2.5T T5
do88 performance intercooler are an all-aluminum construction with cad designed, flow optimized cast end tanks and optimized core design to achieve best possible cooling efficiency combined with lowest possible pressure drop.
Always remember that the OEM intercooler was designed for the power level the car was built for and a power increase or even very hard use of the car in a standard version may cause that the OEM intercooler don’t have the performance you need. So only after engine software tune do88 performance intercooler will give a performance increase over the OEM intercooler.
The OEM intercooler have plastic tanks that don’t keep up with higher boost levels very well so the do88 performance intercooler will also add reliability.
A common misunderstanding is that an intercooler installed in this position cannot provide good performance and a front mounted intercooler / FMIC would be much better. But actually the do88 performance intercooler are far better than most FMIC installations where only a core with small front surface are possible to install and often also installed partially behind the bumper beam which will reduce cooling capacity even further and often cooling below the OEM intercooler are achieved.
do88 performance intercooler comes with all hardware necessary for installation. For installation instruction Click Here! (Comes during winter 2014)
Please Note!
do88 performance intercooler has a 2,5” (63mm) lower intercooler hose connection. Because of this we include a silicone hose which you install between the lower hose connection and intercooler pipe.
