do88 intercooler kit
OEM ref.: 1K0145803A, 1K0145803S, 1K0145803T, 3C0145805R

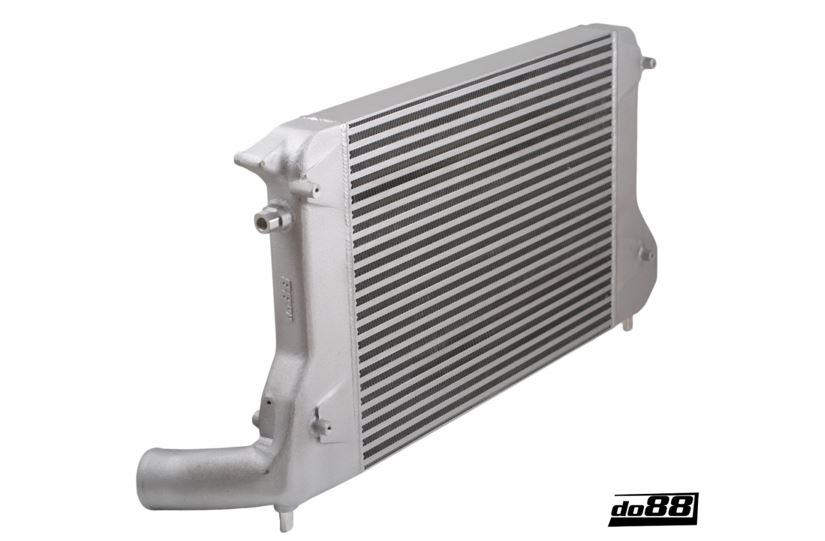

This performance intercooler is developed by do88 to replace the original / OEM intercooler and gives true performance without the need of rebuilding the whole car.
Significant advantages with do88 performance intercooler (OEM intercooler):
- Core volume: 13342 cm3 (7676 cm3), do88 is 74% larger
- Air flow at 0,15 bar / 2,18 psi pressure drop: 448 CFM (335 CFM), do88 34% higher! See diagram in the gallery
- Post intercooler air temperature at same conditions: 29°C (37°C), do88 8°C lower! See diagram in the gallery
The kit includes:
1 pc do88 performance intercooler
1 pc silicone hose intercooler inlet
1 pc silicone hose intercooler outlet
1 pc coupling adaptor
2 pcs M10 x 120 mm screws
9 pcs M6 x 15 mm screws
4 pcs hose clamps
1 pc 10 mm silicone cap
8 pcs M6 washers
Will fit:
OEM ref.: 1K0145803A, 1K0145803S, 1K0145803T, 3C0145805R
This performance intercooler is developed by do88 to replace the original / OEM intercooler and gives true performance without the need of rebuilding the whole car.
Significant advantages with do88 performance intercooler (OEM intercooler):
- Core volume: 13342 cm3 (7676 cm3), do88 is 74% larger
- Air flow at 0,15 bar / 2,18 psi pressure drop: 448 CFM (335 CFM), do88 34% higher! See diagram in the gallery
- Post intercooler air temperature at same conditions: 29°C (37°C), do88 8°C lower! See diagram in the gallery
The kit includes:
1 pc do88 performance intercooler
1 pc silicone hose intercooler inlet
1 pc silicone hose intercooler outlet
1 pc coupling adaptor
2 pcs M10 x 120 mm screws
9 pcs M6 x 15 mm screws
4 pcs hose clamps
1 pc 10 mm silicone cap
8 pcs M6 washers
Will fit:
| Audi A3 Year models: 2005-2012 Engine: 2.0 TFSI 200hp 2.0 TSI 200hp Audi S3 Year models: 2006-2012 Engine: 2.0 TFSI 265hk 2.0 TSI 265hk Audi TT** Year models: 2007-2014 Engine: 2.0 TFSI 200hp 2.0 TSI 200hp | Seat Altea Year models: 2005-2009 Engine: 2.0 TFSI 200hp 2.0 TSI 200hp Seat Leon Year models: 2005-2012 Engine: 2.0 TFSI 200hp 2.0 TSI 200hp Seat Toledo Year models: 2006-2009 Engine: 2.0 TFSI 200hp 2.0 TSI 200hp | Skoda Octavia Year models: 2006-2013 Engine: 2.0 TFSI 200hp 2.0 TSI 200hp | VW Golf MK5. MK6 Year models: 2005-13 Engine: 2.0 TFSI 200hp 2.0 TSI 200hp VW Jetta Year models: 2005-2014 Engine: 2.0 TFSI 200hp 2.0 TSI 200hp VW EOS Year models: 2005-2014 Engine: 2.0 TFSI 200hp 2.0 TSI 200hp |
do88 performance intercooler are an all aluminium construction with cad designed, flow optimized cast end tanks and optimized core design to achieve best possible cooling efficiency combined with lowest possible pressure drop!
Always remember that the OEM intercooler was designed for the power level the car was built for and a power increase or even very hard use of the car in a standard version may cause that the OEM intercooler don’t have the performance you need. So only after engine software tune do88 performance intercooler will give a performance increase over the OEM intercooler!
The OEM intercooler have plastic tanks that don’t keep up with higher boost levels very well so the do88 performance intercooler will also add reliability!
A common misunderstanding is that an intercooler installed in this position cannot provide good performance and a front mounted intercooler / FMIC would be much better. But actually the do88 performance intercooler are far better than most FMIC installations where only a core with small front surface are possible to install and often also installed partially behind the bumper beam which will reduce cooling capacity even further and often cooling below the OEM intercooler are achieved.
Note!
do88 performance intercooler comes with all hardware necessary for installation.
Always remember that the OEM intercooler was designed for the power level the car was built for and a power increase or even very hard use of the car in a standard version may cause that the OEM intercooler don’t have the performance you need. So only after engine software tune do88 performance intercooler will give a performance increase over the OEM intercooler!
The OEM intercooler have plastic tanks that don’t keep up with higher boost levels very well so the do88 performance intercooler will also add reliability!
A common misunderstanding is that an intercooler installed in this position cannot provide good performance and a front mounted intercooler / FMIC would be much better. But actually the do88 performance intercooler are far better than most FMIC installations where only a core with small front surface are possible to install and often also installed partially behind the bumper beam which will reduce cooling capacity even further and often cooling below the OEM intercooler are achieved.
Note!
do88 performance intercooler comes with all hardware necessary for installation.
