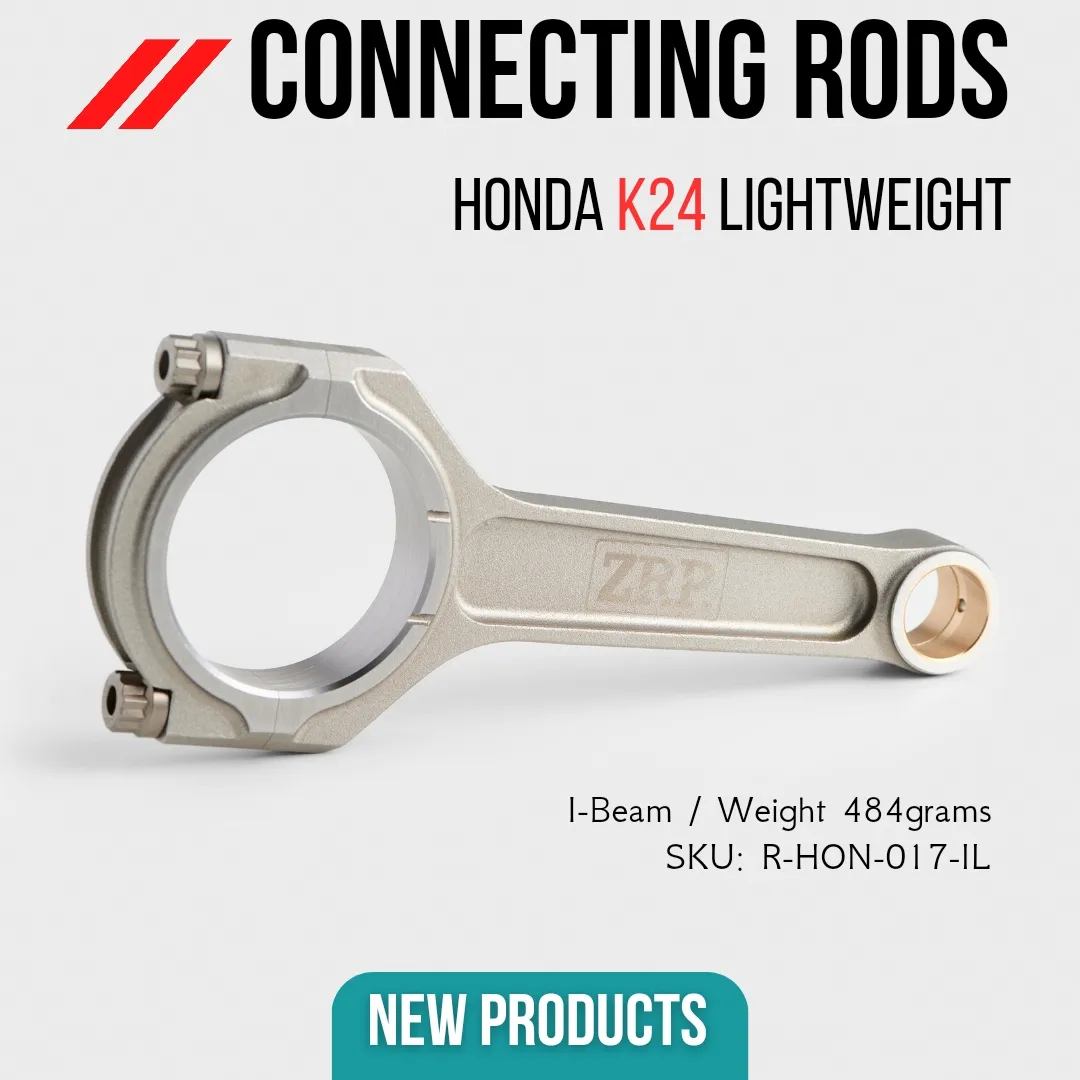

ZRP Forged Lightweight Connecting Rods HONDA K24 engines 152mm x 22mm
ZRP Forged Lightweight Connecting Rods HONDA K24 engines 152mm x 22mm
- 10%
Click for the photo Gallery
566,04 USD     509,44 USD
with VAT without VAT
Add to cart!
The Brutto price (with VAT) includes 0% VAT, if the delivery or pick up country is United States and the Customer is Private person
Options
ZRP Forged Lightweight Connecting Rods HONDA K24 engines 152mm x 22mm 509,44 USD
ARP R19 605,90 USD
Manufacturer
Item no.: AZPRHON017IL
OEM-no.: R-HON-017-IL

Longer delivery!
ZRP Forged Lightweight Connecting Rods - 152.00mm x 22.00mm

Will fit:
Honda - all versions with K24 engines

The I-Beam series Connecting rods for Honda K24 engines aimed for the High Hp/Boost applications.

Built from the finest raw materials 4340 high tensile steel with a specially optimized shape for high performance and extreme durability.

The “straight cut” pin end increases durability, so they can only be used in conjunction with aftermarket pistons.

The bushings are made from AMPCO 18 material, for excellent resistance to wear and fatigue and have radial groove acting as an oil reservoir. They are shot peened to relieve stress from the material and multi-stage heat treated to increase rigidity. The tight tolerances in the production process, ensure a perfect fitment while optimizing the oil clearances.

Bend and twist is tightly controlled.

Each rod includes 3/8 ARP 2000 cap fasteners that are rated at 220,000psi, optional ARP L19 material 260.00psi available as an upgrade and the whole kit is supplied with ARP moly and full fitting instructions.

Additional machining processes

Tapered Pin End – Also suitable for O.E.M pistons
Dowel sleeves for perfect fit and accurate re-assembling
Lipped Cap Relief for improved big-end integrity at extreme application
Grooves in Thrust Face for weight reduction
Lightweight Design
Technical Features of ZRP Connecting Rods

I-Beam Shape for extra rigidity
Two-Piece forging for great strength
Shot Peening for improved fatigue life
Magnaflux Inspection guarantees that the consistency of the forged material meets our high-quality standard
Double ribbed caps for added support
Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life.
CNC machining for superior tolerances, precise as much as 0.0002″
Center to center is maintained under .001″ tolerance
Finite Element Analysis (FEA) Computer generated stress analysis of con rods
Optimal balancing for weight matched sets of ± 1gram
