The best Toyota Yaris GR performance intercooler kit on the market!

This BigPack includes both do88 performance intercooler and pipe kit.

This kit is for you with high horsepower goals and want to upgrade to the absolutly best! Just changing to our performance intercooler is a big improvement, together with our pressure pipe kit the improvement is huge! Our pressure pipes have considerably better airflow than stock piping, verified by several tests both in car and in our own SuperFlow SF-1020 flow bench.

Advantages with do88 BigPack:

- Greater core volume: 13 971 cm3 vs 7 320 cm3, 91% bigger!

- Larger active cooling area , 2451 cm2 vs 913 cm2, 168 % bigger!

- Larger inlet/outlet connections: 63mm (2 ½”) vs 45mm (1 ¾”), 95% lager area!

- Air flow at 0,175bar/2,54psi pressure drop: 284 CFM vs 203 CFM, 40 % higher!

- Peak powergain of 26 whp together with do88 turbo inlet! Measured on car with TTE400 turbo, Syvecs ECU etc.

- Lower post intercooler air temperature at same conditions: 25°C (50°C), 25°C lower!

Fits:

Toyota Yaris GR

Model years: 2020-

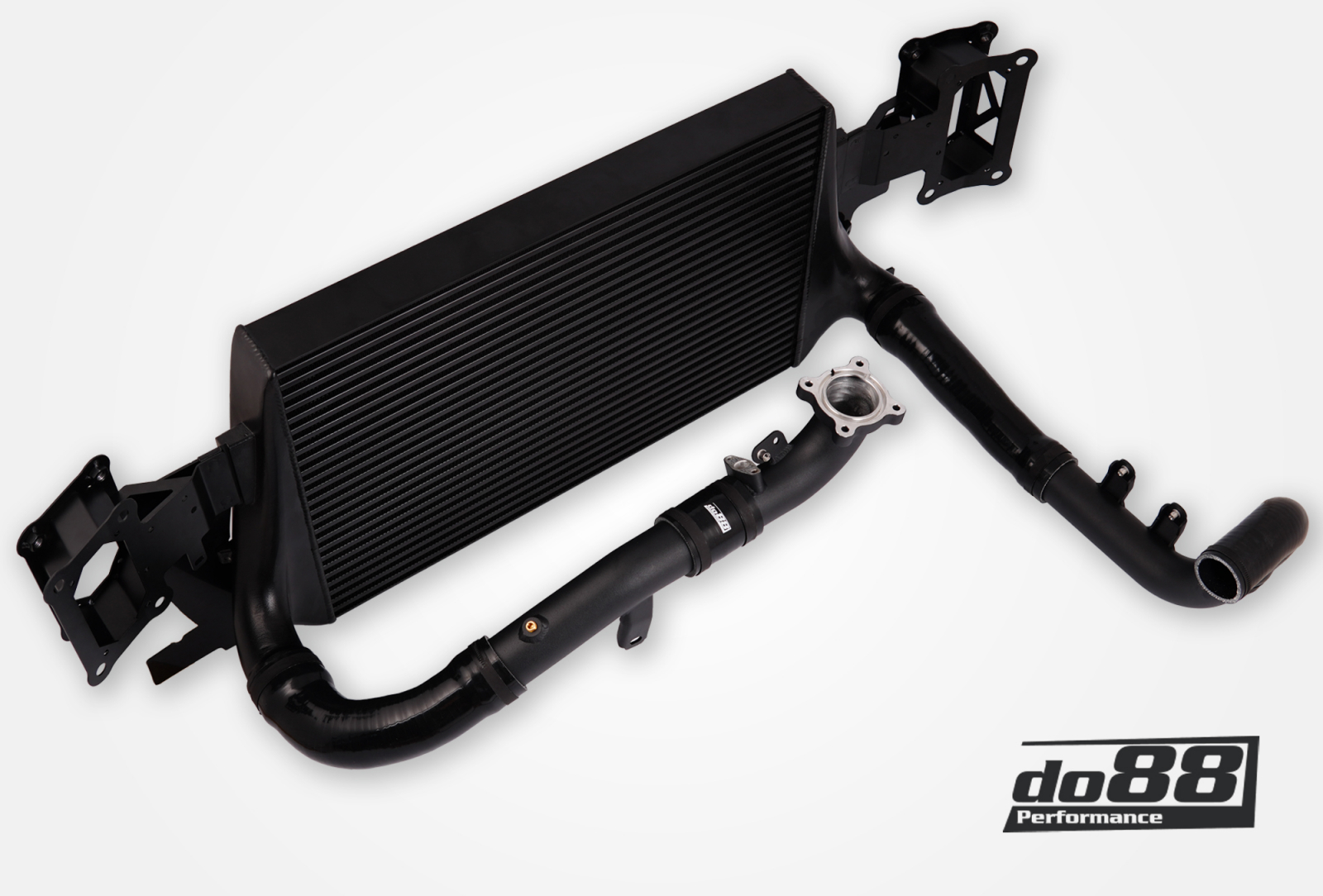

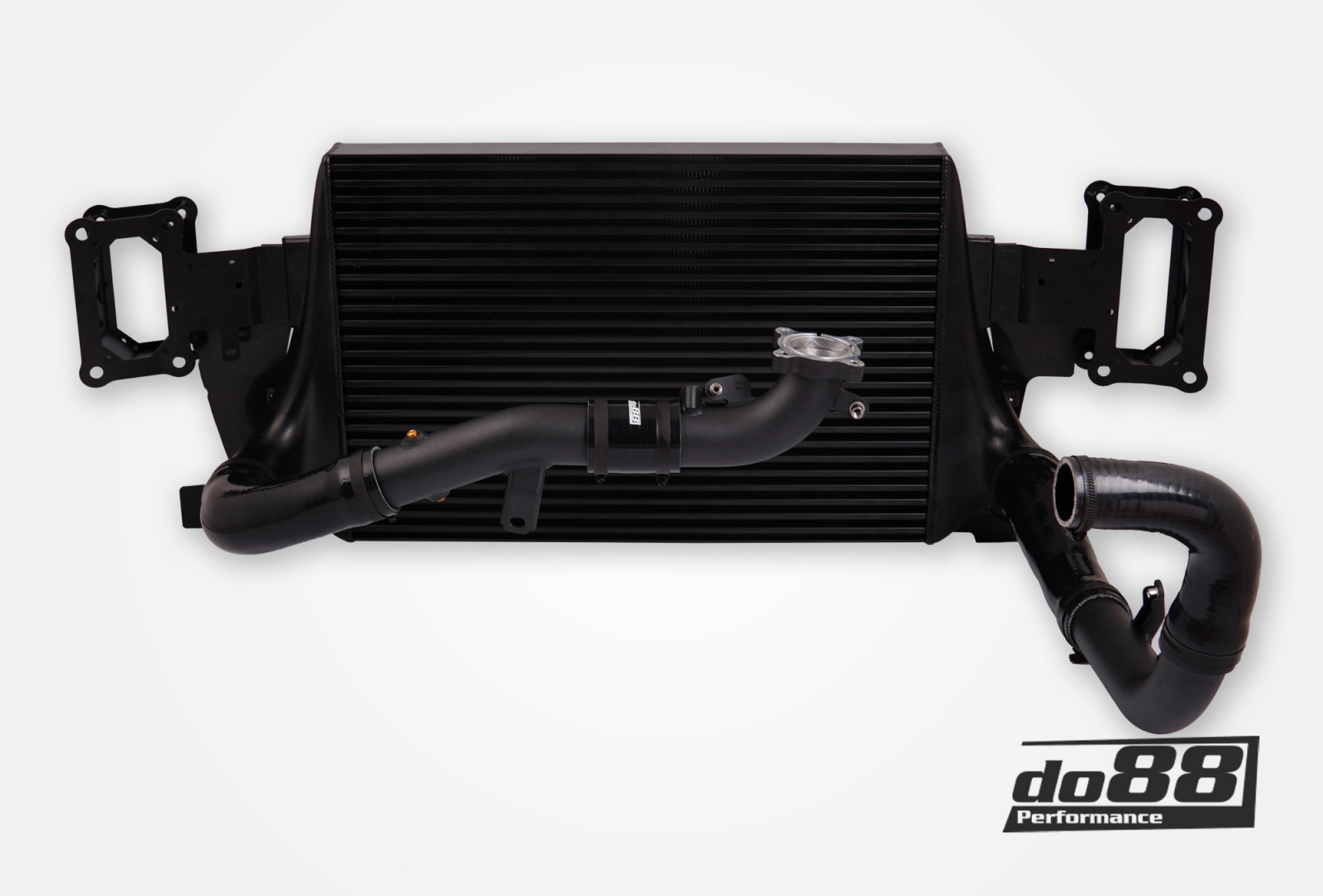

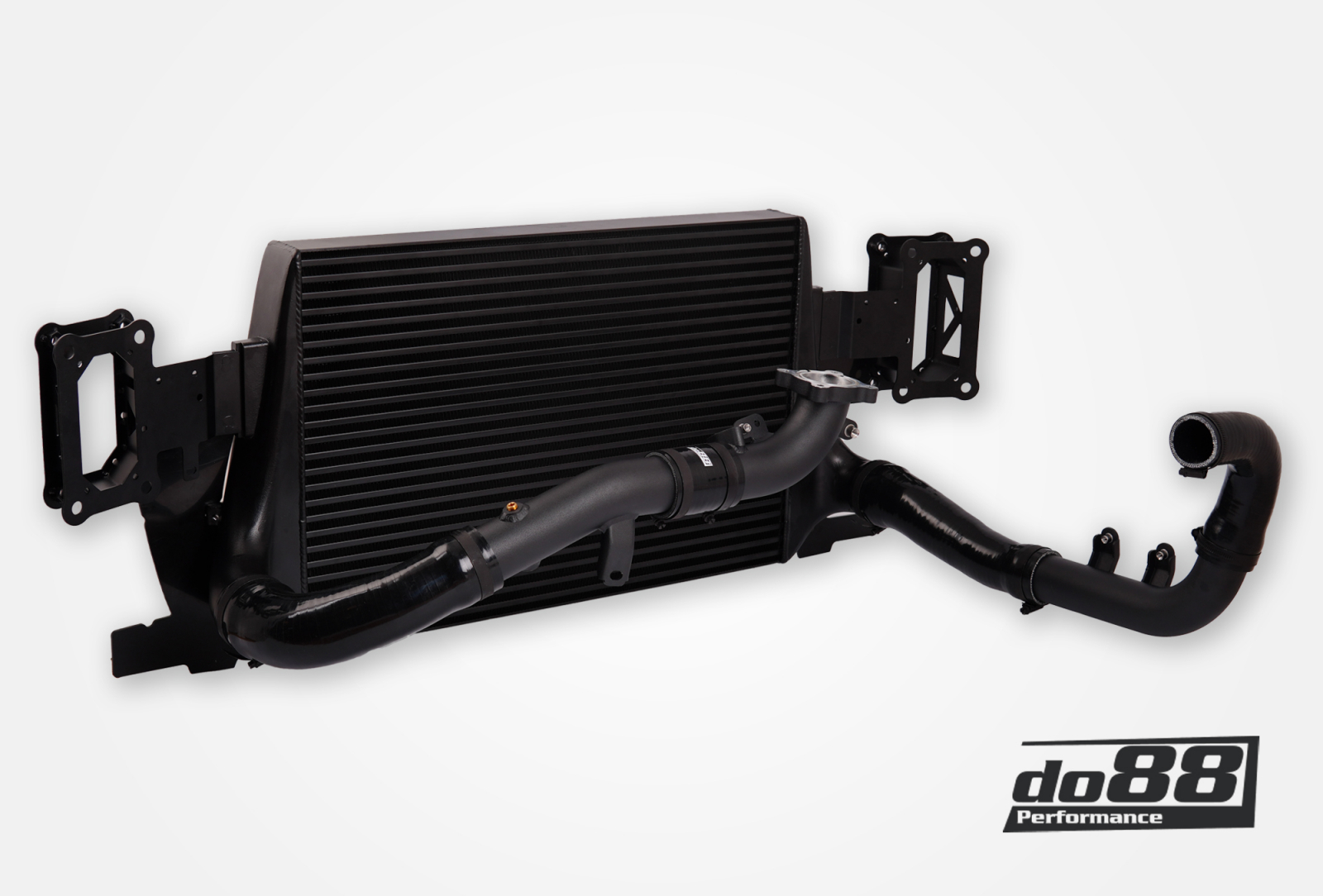

The BigPack includes a full aluminum performance intercooler and a complete 2 and 2 1/8” pipe kit and silicone hoses. This BigPack replaces everything between the turbo outlet and the throttle body, hence the drastical improvement in airflow and cooling performance.

The do88 performance intercooler is an all-aluminum construction. With CAD-designed, flow optimized cast end tanks along with an optimized core design, it achieves the best possible cooling efficiency combined with lowest possible pressure drop!

The pressure pipes are manufactured in 2 and 2 1/8” mandrel bent seamless aluminum pipes.

Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement. These hoses can handle very high temperature and pressure!

Always remember that the OEM intercooler was designed for the power level the car was built for originally. A power increase or even very hard use of the car in standard version, may cause the OEM intercooler not having the performance that you need. So only after an engine software tune the do88 BigPack will give a performance increase over the OEM intercooler!

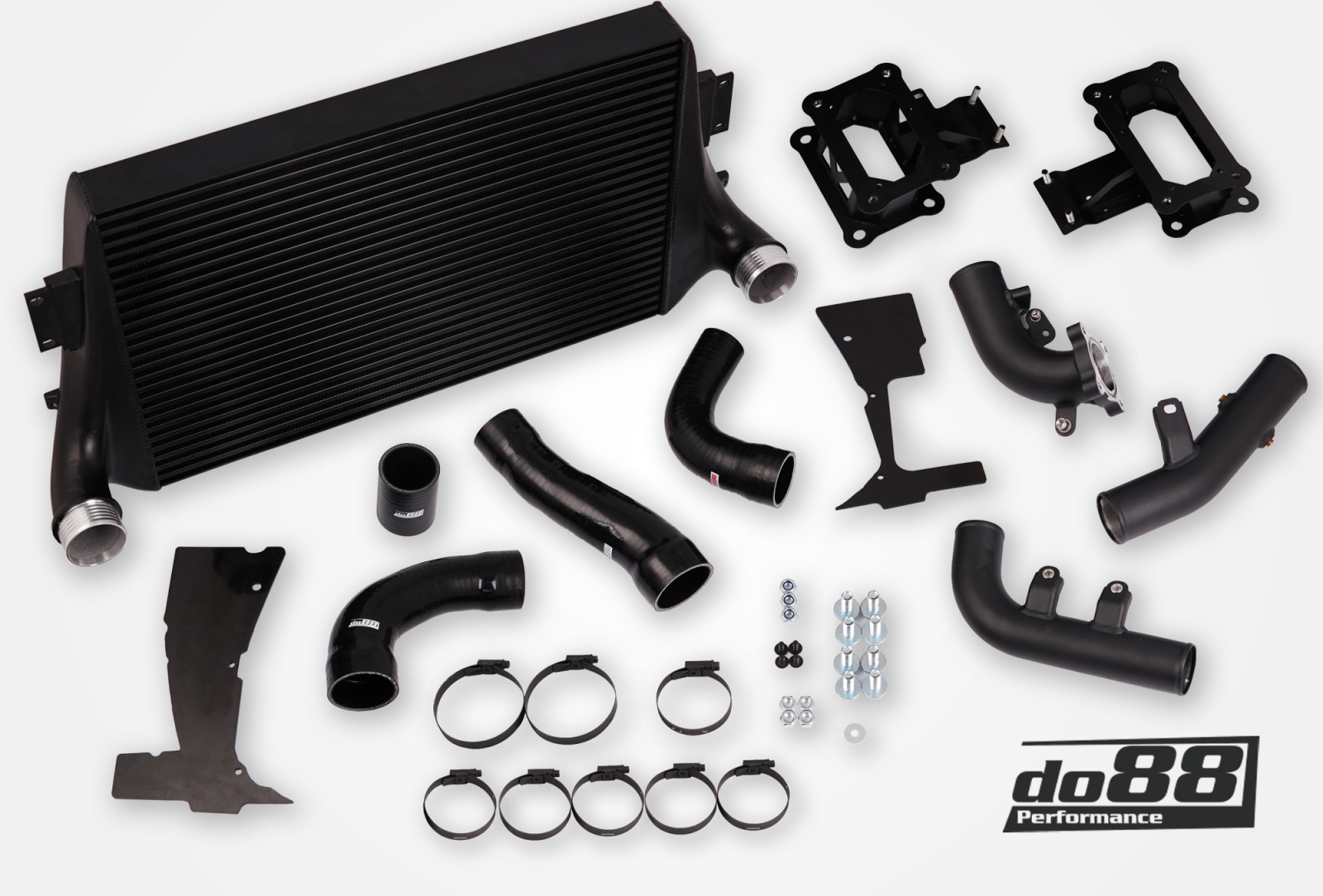

do88 BigPack comes with all hardware necessary for installation.

Click here for intercooler installation guide.

Click here for pressure pipe installation guide.

OEM-reference:

17940-18010, 17361-18020, 17362-18010, 17360-18010, 17363-18010, 17342-18010, 17343-18020, 17344-18010, 17345-18010

This diagram shows the charge air flow at different pressure drops of do88 BigPack compared to OEM intercooler and pipes:
