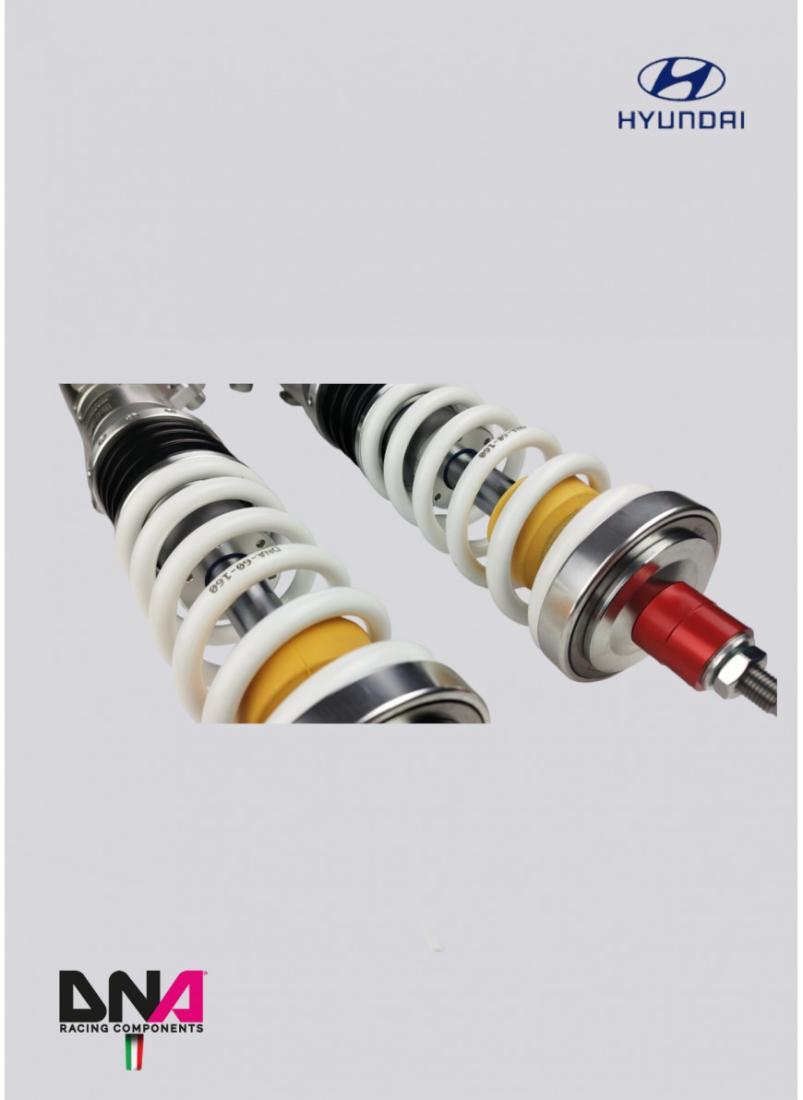

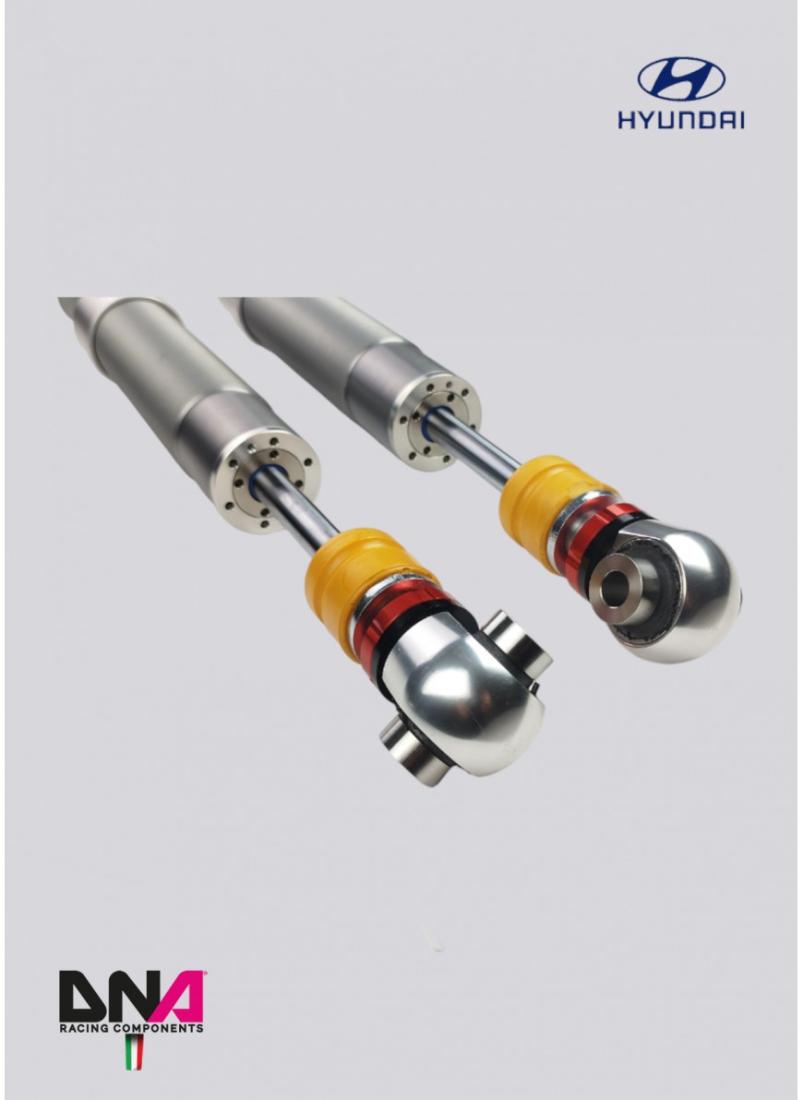

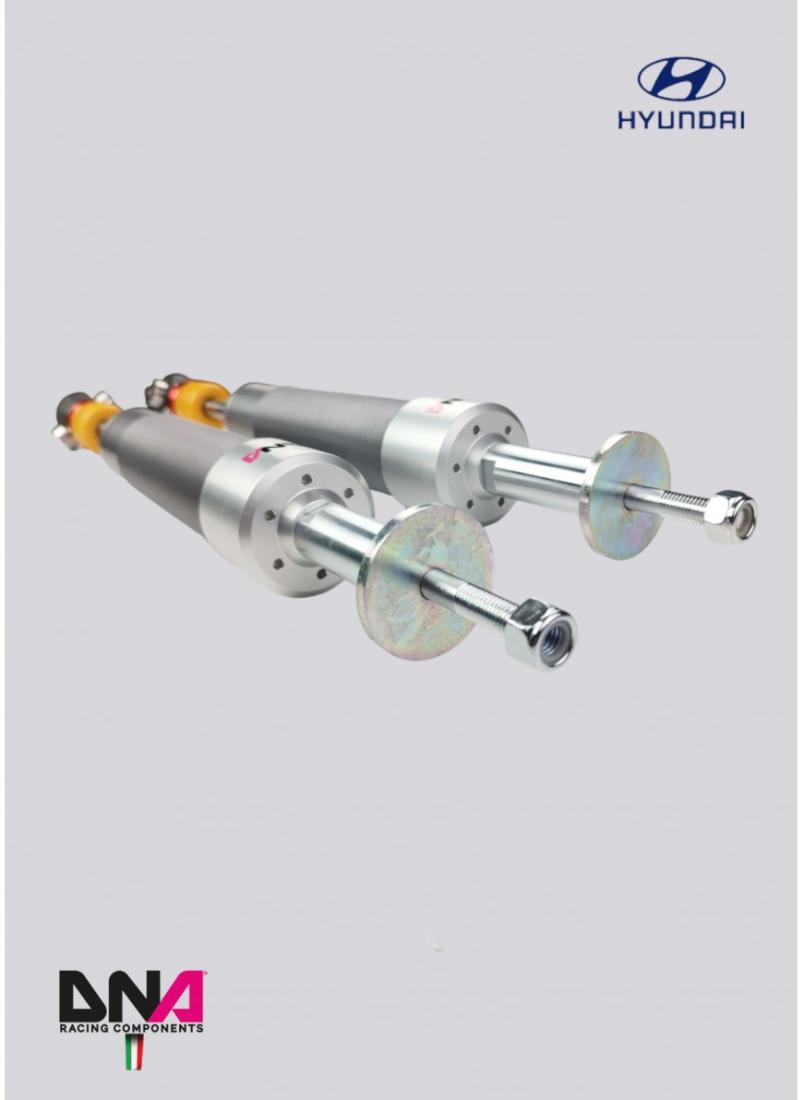

Hyundai I20N DNA Racing WRS shock absorber kit
WRS shock absorber kit with one-way rebound and compression adjustment.

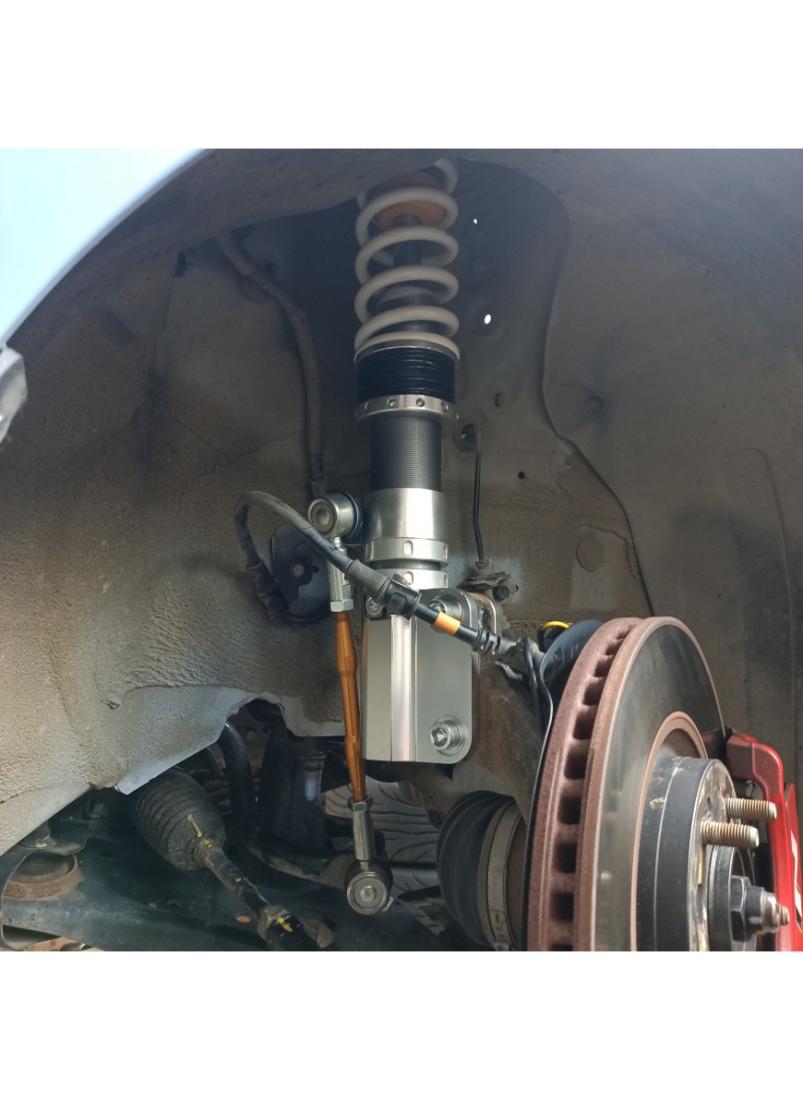

Two front anti-roll tie rods specific for our shock absorber kit are included.
The objective set by our technicians was to create the best set-up on the market with an unbeatable quality-price ratio and above all without compromises, a very flexible product that could guarantee superior performance without sacrificing everyday comfort and the possibility of performing on the track.
The objective has been achieved: comfort, performance, traction, stability, driving pleasure, safety and flexibility.
The shock absorbers of the WRS line are high-quality products with a very attractive design with the majority of components machined from billet in aluminium.
Technical specifications:
46mm piston
53.5 mm body

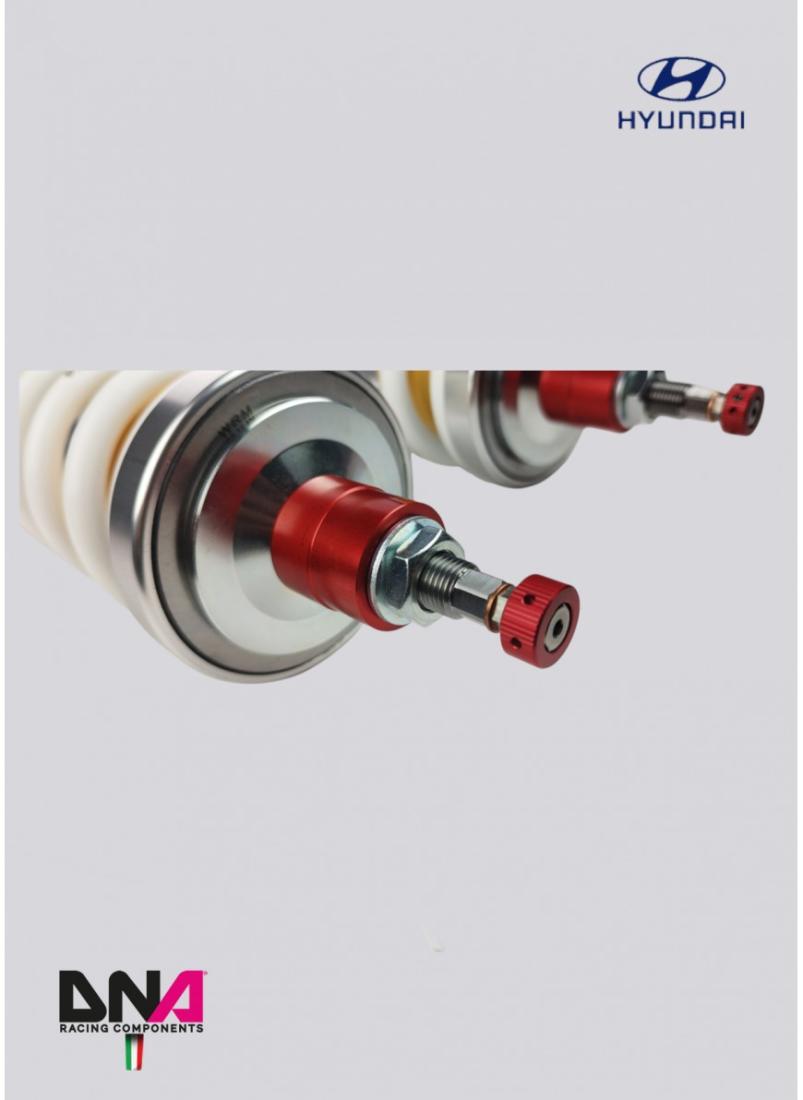

One-way hydraulic rebound and compression adjustment

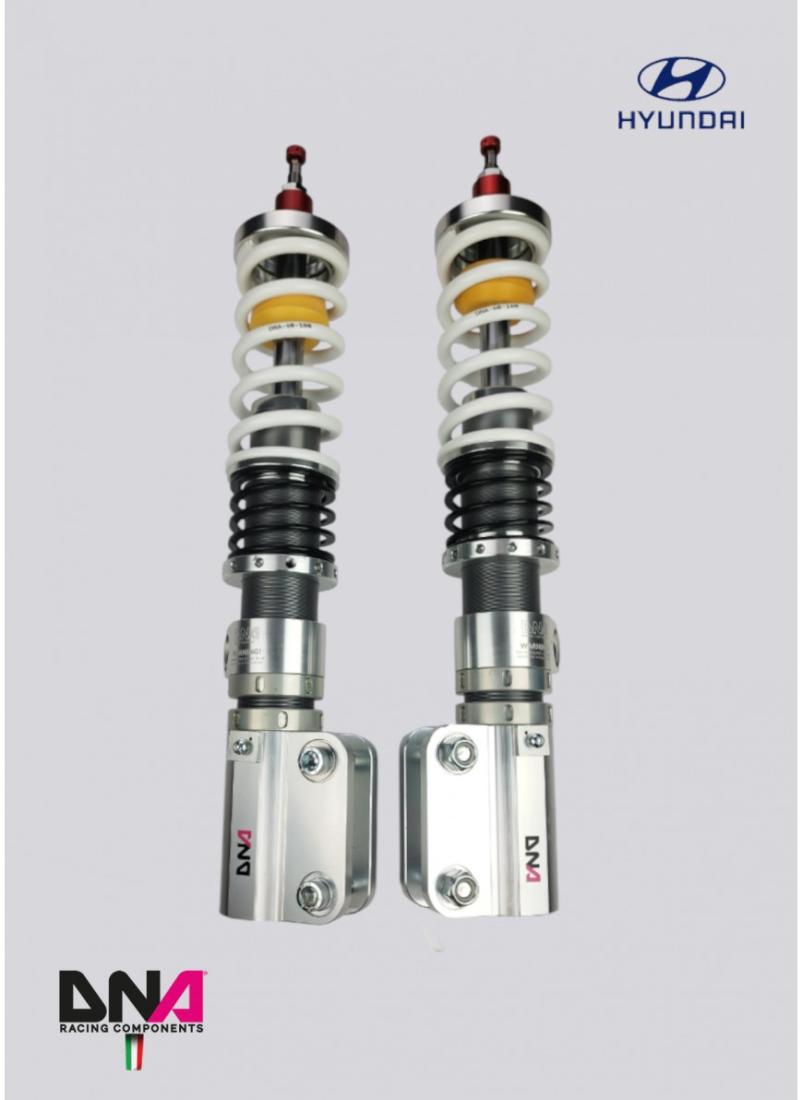

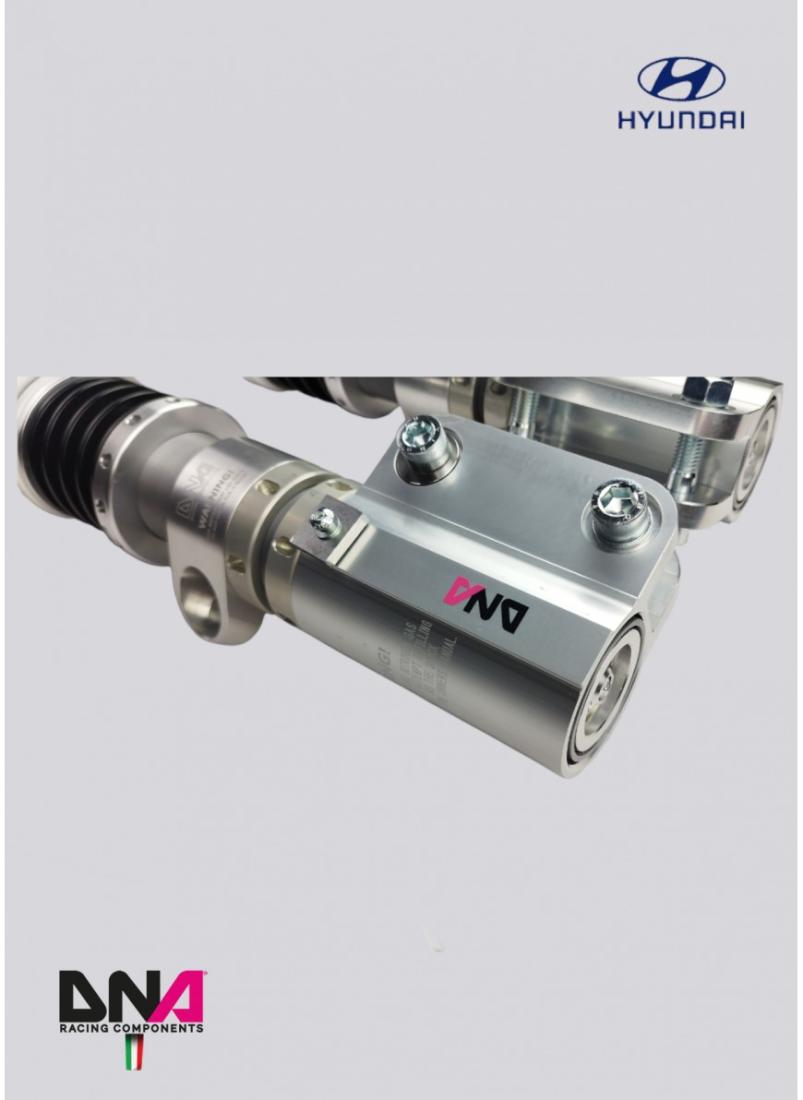

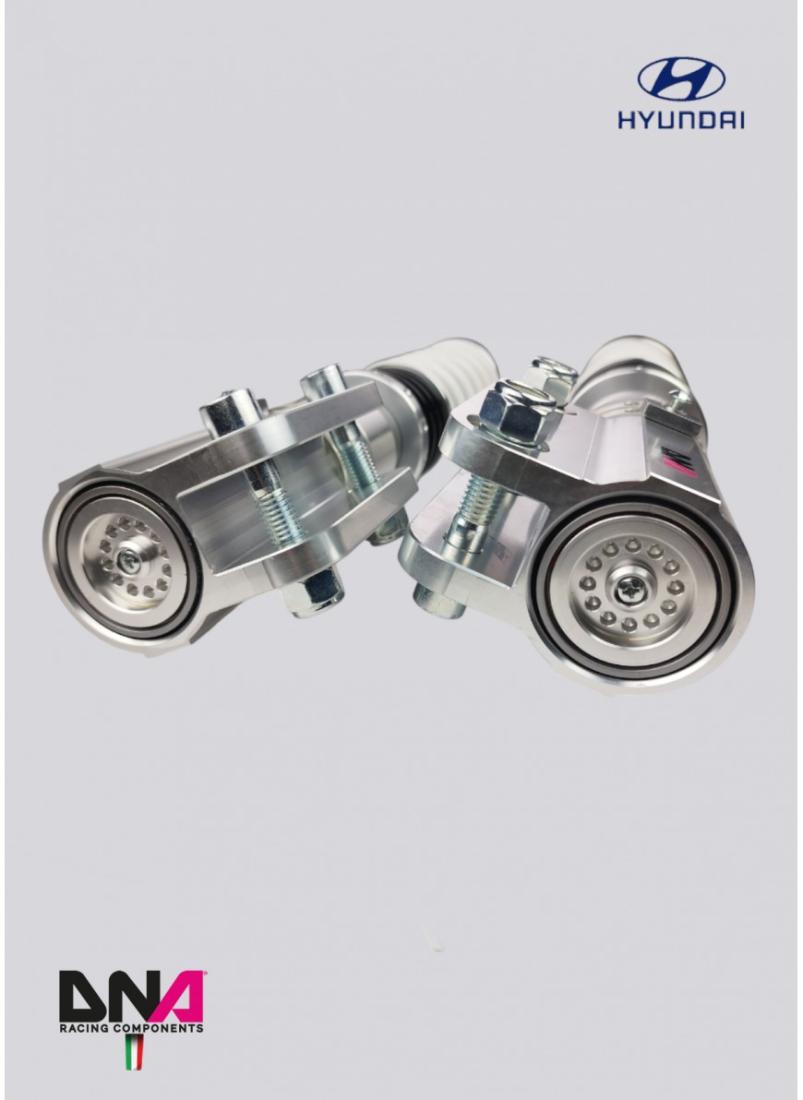

Camber adjustment via eccentric bush (stock or -2,5°)
Height adjustment via leg or spring preload

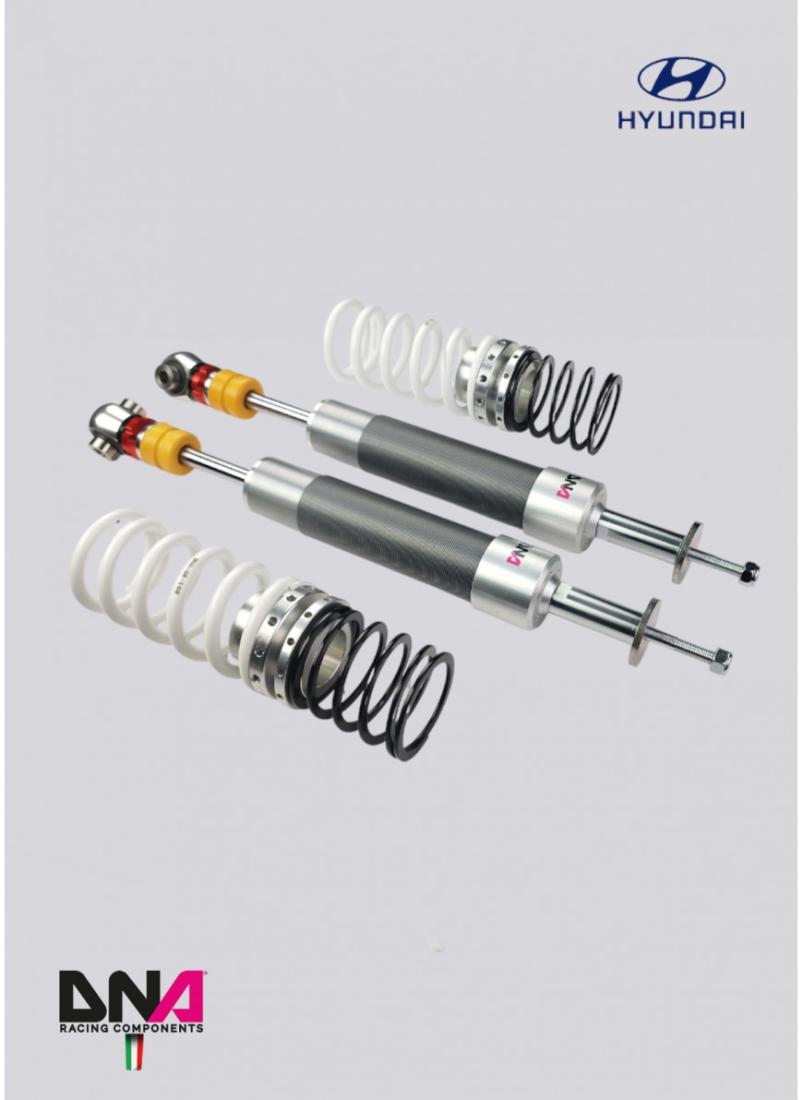

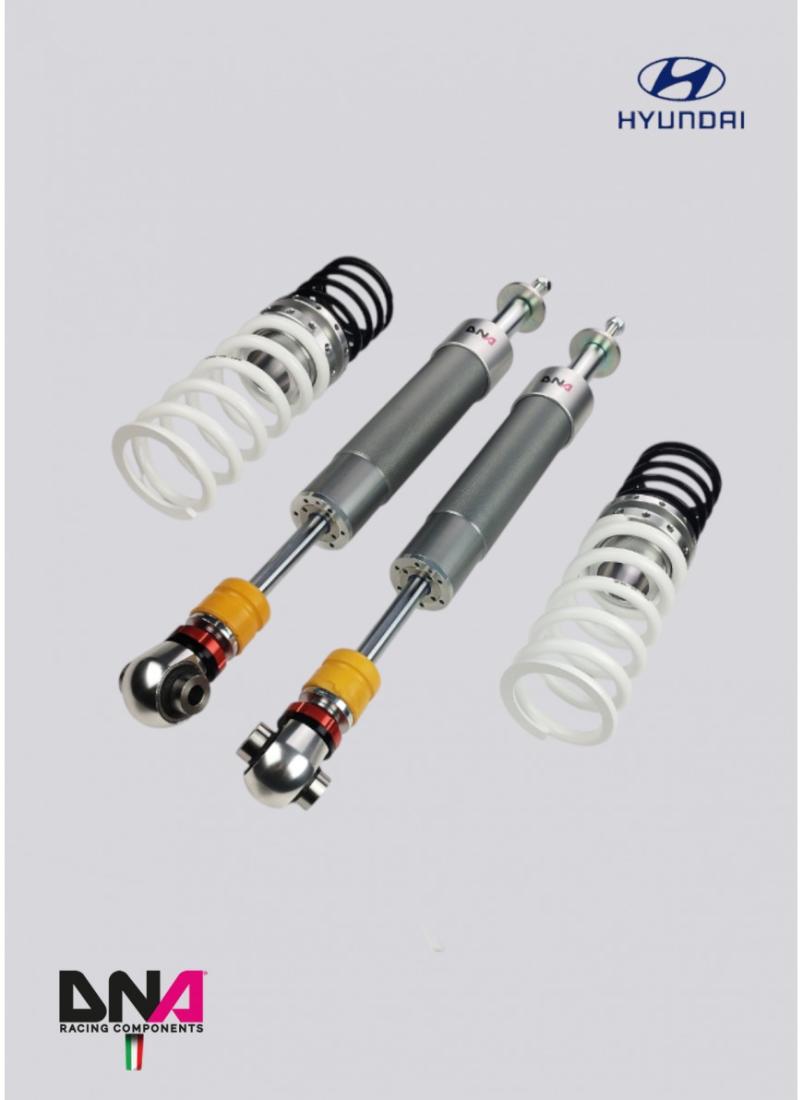

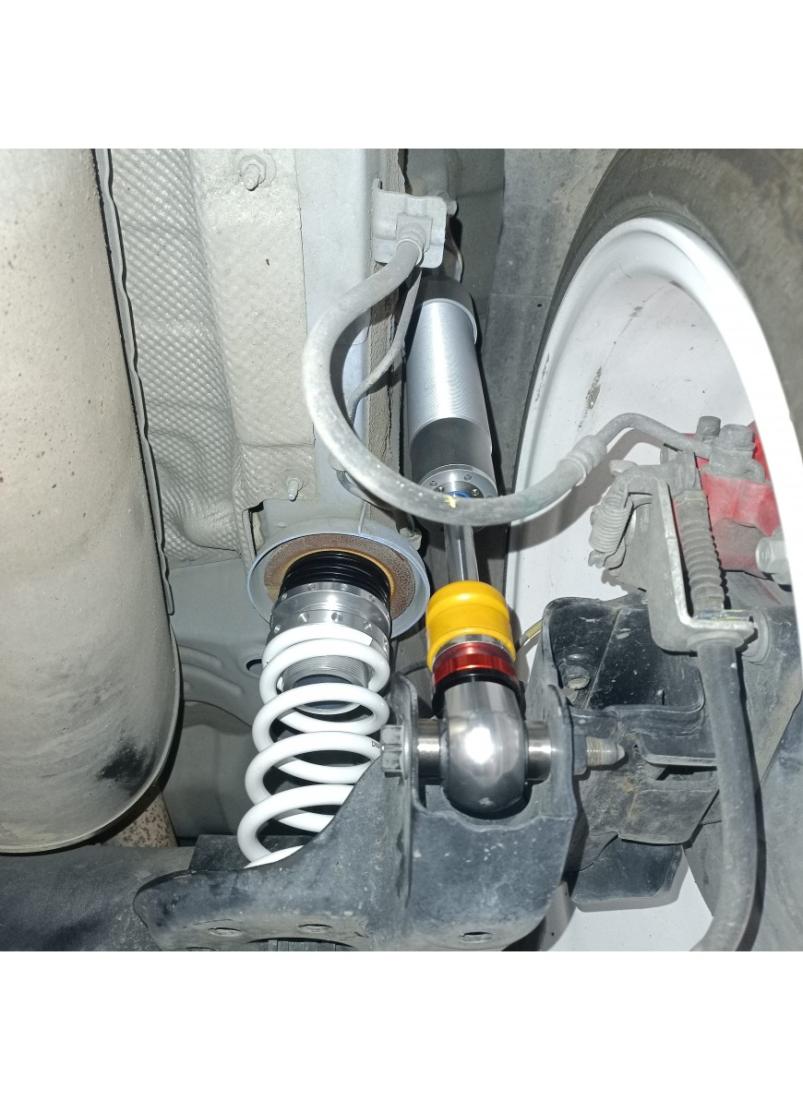

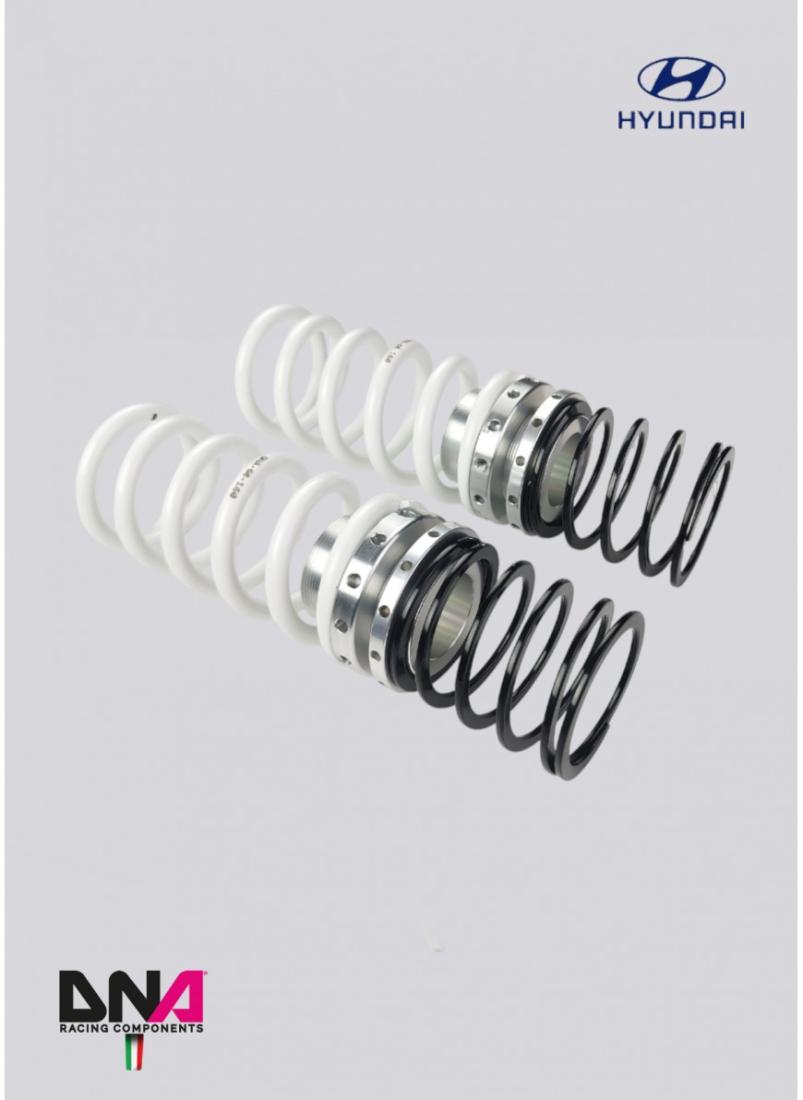

Coil over spring front (60N/mm+4,5N/mm helper spring ) and rear on the axle (60N/mm+4,5N/mm helper spring) with competition spring of an internal diameter of 60mm
Body protection with zinc nickel treatment
Components machined from billet in aluminium
Mount on original top mount
Top mount with camber adjustment on uniball (optional)
Serviceable
Every single product is tested on a dynamometer before sale
Two front anti-roll tie rods specific for our shock absorber kit are included.
The kit does not include the Top Mount, which can be purchased at this link:
TOP MOUNT VERSION FOR DNA RACING SHOCK ABSORBER KIT HYUNDAI i20N
Applications Hyundai i20N (2020-2024)
Materials Machined from billet aluminum
FinishingAnodizing, galvanizing and body protection with zinc nickel treatment
Shock absorber springs Coil over spring front (60N/mm) rear (60N/mm) with competition spring of an internal diameter of 60mm
TechnologySingle-tube
Piston 46mm
Body53.5mm
Height adjustment Via leg or spring preload
Hydraulic adjustment One-way hydraulic rebound and compression adjustment
Camber adjustment Via eccentric bush (stock or -2,5°) or top mount (optional)
Notes Fit on original top mount - Serviceable - Every single product is tested on a dynamometer before sale
